Astm A105 Flange / ASME SA 105 Carbon Steel Flanges Suppliers

ASTM A105 Slip on Flange & ASTM A105 Carbon Steel Forged Flanges Suppliers India Since 1989 in India

CARBON STEEL PIPE ASTM A105 FLANGES - A105, A350 LF2, A694 Carbon Steel Slip On, Socket Weld, Weld Neck, Threaded, Blind, Lap Joint, Long Weld Neck, Orifice/Orifice Plate Stockist Mumbai India

ANSI B16.5 / ASME B16.47 A105 FLANGES, CARBON STEEL SLIP ON FLANGES SUPPLIERS, A105 WNRF FLANGES , CARBON STEEL PIPE ASTM A105 FLANGES STOCKHOLDER AND READY TO SHIP INVENTORY.

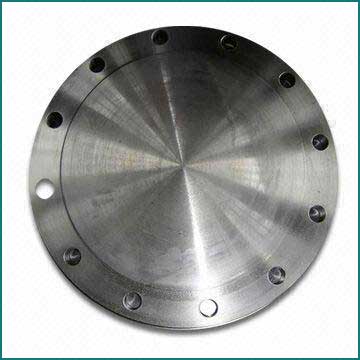

Carbon Steel ASTM A105 Blind Flanges	astm a105 carbon steel plate flange	A105 Carbon Steel Slip On Flanges	A105 Carbon Steel Socket weld Flanges
CS ASTM A105 Orifice Flanges	CS A105 Threaded Flanges	ASTM A105 Carbon Steel Welding Neck Flanges	carbon steel wnrf Flanges

CS Flanges Manufacturers In India, Slip On, Weld Neck, Blind Type Carbon Steel Flanges Suppliers, CS Flanges As Per Ansi B16.5, Bs10 Table D, Table E Carbon Steel Flanges, Din Standard CS Flanges, Carbon Steel A105/105n Flanges Manufacturers In Mumbai, Carbon Steel Flanges Suppliers, 150# | 300# | 600# | 900# |1500# | 2500#

Rajgiri Metal Corporation Is An Iso 9001:2018 Certified Leading Manufacturer Of Pipe Fittings & Flanges In Stainless Steel,Carbon Steel & Alloy Steel Material, Supplying Quality Pipe Fittings In Oil & Gas Projects, Engineering Companies,Petrochemical,Nuclear Power Project Since 1989 in India and Iran, Stainless Steel Pipe Fittings Manufactured At Rajgiri Metal Shipped & Used By Choice In Countries Such As United Arab Emirates , Oman ,Saudi Arabia ,Qatar ,Kuwait ,Turkey ,Singapore & More Than 15 Countries In Gulf,West Africa & Far East Countries

Rajgiri Metal is only manufacturer, stockiest & supplier of Carbon Steel Pipe ASTM A105 flanges which is approved by largest Oil & Gas Companies,Power sector companies like Indian Oil Corporation,BHEL,NTPC,Reliance Industries Ltd & many more. our Carbon Steel Pipe ASTM A105 flanges have special quality finishing and duress for long life, high pressure and zero defects.

The product differentiation is based on the premier finish of Carbon Steel Pipe ASTM A105 flanges with minimum burr at the edge .

Rajgiri Metal is known for fastest delivery of the Carbon Steel Pipe ASTM A105 flanges to UNITED ARAB EMIRATES , OMAN , SAUDI ARABIA , QATAR , KUWAIT , TURKEY , SINGAPORE because of excellent warehousing and storage facilities for both finished and semi finished Carbon Steel Pipe ASTM A105 flanges in Maharashtra & Gujarat.our Carbon Steel Pipe ASTM A105 flanges are manufactured to sustain very high pressure and minimum 3 years warranty.

Lot of emphasis is placed on the packaging . The Carbon Steel Pipe ASTM A105 flanges are packed in wooden corrugated boxes, foiled in bubble wraps.

Carbon Steel Pipe ASTM A105 flanges are offered with a NACE 3.1 Certification, Mill Test Certification and ISO 17025 Standards by a Government of India approved Laboratory. Positive Material Identification is done on all raw material procured at Rajgiri Metal.

The Carbon Steel Pipe ASTM A105 flanges are used in Hardware , Petrochemical Industry, Oil and Gas Industry , Nuclear Industry, Pulp & Paper Industry, Research & Development , Mega Projects & Defense & Development Industries. In fact our steel Carbon Steel Pipe ASTM A105 flanges are already tested in critical applications worldwide.

Carbon Steel Pipe ASTM A105 flanges is most selling grade in Stainless Steel series due to the excellent properties and general usage in highly corrosive environment. We have more than 2 decades of experience in supplying Carbon Steel Pipe ASTM A105 flanges

we have ready stock of more than 50 tons of Carbon Steel Pipe ASTM A105 flanges in all sizes, in Seamless and Welded to cater to immediate delivery and urgent needs of the clients. we provide online Virtual tour of our Stockyard & Factory in Gujarat & Mumbai is full with Carbon Steel Pipe ASTM A105 flanges

ASTM A182 F91 Alloy Steel Flanges Manufacturer, STOCKHOLDER, Supplier

1. Our stock range for A105/105N carbon steel flanges is from 1/2″ NB to 24″ NB, and we can supply up to 48″ NB Flanges and higher sizes too as per international standards.
2. We offer carbon steel flanges with face finishes to suit Raised Face, Flat Face and RTJ and can machine other face finishes upon request.
3. We are able to manufacture Orifice Weld Neck Carbon Steel Flanges, Drip Rings, Spectacle Blinds Carbon Steel Flanges and Special Flanges to customer specific requirements.
4. Our products are of high quality, and come with complete certification and marking on each flange.
5. We can offer carbon steel flanges in various finished including hot dip galvanised finish, blackodised finish, shot blasted, black oil paint and rust free oil finish.

ASTM A105 CS BLIND FLANGES, CARBON STEEL A105 SORF FLANGES, A105 RTJ FLANGES MANUFACTURER & STOCKHOLDER.

ASTM A105 CARBON STEEL FLANGES SPECIFICATION

Material Type :-

Specification :	ASTM A105 / A350 LF2, ASTM A694 - F42, F46, F52, F60, F65, F70, A36, A516 Gr. 70,60.
Dimensions :	ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Standards :	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc.
Size :	1/2"NB TO 48 "NB
Class :	150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND 6,10, 16, 25, 40
Flange Face Type :	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

A105/105N Carbon Steel Flanges Manufacturer, Supplier in India

Carbon Steel Forged Flanges/Plate Flanges

Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size	1/2″ to 48″
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Product		Size
A105, 105N Carbon Steel Slip-On Flanges	A105, 105N Carbon Steel Threaded Flanges	1/2″ – 48″ Raised Face or Flat Face
A105, 105N Carbon Steel Weld Neck Flanges	A105, 105N Carbon Steel Socket Weld Flanges
A105, 105N Carbon Steel Blind Flanges	A105, 105N Carbon Steel Reducing Flanges
A105, 105N Carbon Steel Lap Joint Flanges	A105, 105N Carbon Steel Plate Flanges

types Of Carbon Steel Pipe ASTM A105 flanges

ASTM A105 Carbon Steel Flanges Available Types

Carbon Steel Flanges	Carbon Steel EN 1092-1 Flanges
Carbon Steel BS 4504 Flanges	Carbon Steel A105N Forged Flanges
Carbon Steel A105 Flanges	Carbon Steel Slip on Flanges
Carbon Steel Flat Flange Suppliers	ANSI Carbon Steel Blind Flange
Carbon Steel A105N Weld Neck Flanges Dealer	Carbon Steel Socket weld Flanges Exporter
Carbon Steel Long Weld Neck Flanges Stockholder	CS ASTM A105 Threaded Flanges Distributors
Carbon Steel ASTM A105 Reducing Flanges	Carbon Steel Ring Type Joint Flanges Manufacturer
Carbon Steel A105 Orifice Flange	ASTM A105 Carbon Steel Spectacle Blind Flanges
ASME SA105 Carbon Steel WNRF Flange	Carbon ASTM A105N SORF Flanges
ANSI B16.5 Carbon Steel RTJ Flanges	Carbon Steel Screwed Flanges Stockist
ASTM A105N Carbon Steel Lap Joint Flanges	ASME SA105 Carbon Steel BLRF Flange
Carbon Steel Raised Face Flanges	ASTM A105 Carbon Steel Nipoflange
A105 Carbon Steel Square Flanges	ASME SA105N Carbon Steel SWRF Flange
Steel Tongue & Groove Flanges	Carbon Steel Male & Female Flanges
A105 Carbon Steel DIN Flanges	Carbon Steel ASME B16.5 Flanges

How to read the pressure-temperature rating charts:

A carbon steel flange class 150 withstands up to 285 psi for temperatures below 100 F°, 200 psi for temperatures below 400°, and 20 psi at high temperatures as 1000 F°
A carbon steel flange class 300 withstands up to 740 psi (instead of 285) at temperatures below 100 F° and of 635 psi at temperatures below 400 F° (instead of 200 psi)
A stainless steel flange class 150 withstands up to 270 psi for temperatures below 100 F°, 190 psi for temperatures below 400°, and 20 psi at high temperatures as 1000 F°

CARBON STEEL FLANGE PRESSURE RATING

Carbon steel flange pressure-temperature rating ASME

ASTM A105, A350 LF2, A350 LF6 Class 1 FLANGE RATING

PRESSURE-TEMPERATURE CHART IN PSI

Maximum allowed pressure in psi for flanges on different classes by increasing temperatures (Celsius or Fahrenheit)

Temperature (in F°)	150#	300#	400#	600#	900#	1500#	2500#
< 100	285	740	985	1480	2220	3705	6170
200	260	680	905	1360	2035	3395	5655
300	230	655	870	1310	1965	3270	5450
400	200	635	845	1265	1900	3170	5280
500	170	605	805	1205	1810	3015	5025
600	140	570	755	1135	1705	2840	4730
650	125	550	730	1100	1650	2745	4575
700	110	530	710	1060	1590	2655	4425
750	95	505	675	1015	1520	2535	4230
800	80	410	550	825	1235	2055	3430
850	65	320	425	640	955	1595	2655
900	50	230	305	460	690	1150	1915
950	35	135	185	275	410	685	1145
1000	20	85	115	170	255	430	715
Hydrostatic Test Pressure (in Psig)	450	1125	1500	2225	3350	5575	9275

Carbon Steels A105 - ASME SA-105/SA-350 Grade LF2

Description

This grade is used primarily for steel piping components for low temperature, ambient and higher temperature service as required by ASME specification SA-105 (Specification for Carbon Steel Forgings for Piping Applications) and ASME Specification SA-350 (Specification for Carbon and Low-Alloy Steel Forgings, Requiring Notch Toughness Testing for Piping Components).

Principal Design Features A 105 is an ASTM specification dealing with forged carbon steel piping components. The steel alloy involved is a low carbon, manganese and silicon containing steel similar to AISI 1330, but with lower manganese content.

ASTM A105 Applications : This ASTM specification covers carbon steel forgings for piping applications such as flanges and fittings

ASTM A105 Machinability : Machinability is good as for any of the low alloy steels.

ASTM A105 Forming : This specification covers forming by forging only.

ASTM A105 Welding : The steel covered by this specification is weldable. Weld procedures used must be qualified with Section IX of the ASME Boiler and Pressure Vessel Code.

ASTM A105 Heat Treatment : Heat treatment is not required except for flanges or piping components as called out in ASTM A 105/A section 5.1. When heat treatment is required it consists of normalizing at 1550 to 1700 F and air cooled. Quenching direct from the forging heating shall be followed by a temper at 1100 F and air cool.

ASTM A105 Forging : This is a forging alloy that would be forged at temperatures in the range of 2200 to 1700 F followed by quenching and tempering or normalizing.

ASTM A105 Cold Working : This specification does not cover cold working other than machining.

ASTM A105 Annealing : Annealing may be done by first allowing the forged parts to cool to below 1000 F and then reheat to between 1550 and 1700 F followed by slow furnace cooling.

ASTM A105 Aging : Not applicable.

ASTM A105 Tempering : Tempering is done at 1100 F followed by air cooling.

ASTM A105 Hardening See "Heat Treatment" and "Tempering".

Other Comments Physical and mechanical properties are similar to those for AISI 1330 steel. Consult ASTM A105 for requirements as to strength and hardness.

ASTM A105 Physical Data :

Density (lb / cu. in.)	0.284
Specific Gravity	7.9
Specific Heat (Btu/lb/Deg F - [32-212 Deg F])	0.107
Melting Point (Deg F)	2740
Thermal Conductivity	360
Mean Coeff Thermal Expansion	6.7
Modulus of Elasticity Tension	30
Modulus of Elasticity Torsion	11

CHEMICAL REQUIREMENTS ASTM A105

ELEMENT	COMPOSITION, %
Carbon	0.35 max
Manganese	0.60-1.05
Phosphorus	0.035 max
Sulfur	0.040 max
Silicon	0.10-0.35
Copper	0.40 max (1)
Nickel	0.40 max (1)
Chromium	0.30 max (1-2)
Molybdenum	0.12 max (1-2)
Vanadium	0.08 max
(1) The sum of copper, nickel, chromium, molybdenum and vanadium shall not exceed 1.00%. (2) The sum of chromium and molybdenum shall not exceed 0.32%. Note: For each reduction of 0.01% below the specified carbon maximum (0.35%), an increase of 0.06% manganese above the specified maximum (1.05%) will be permitted up to a maximum of 1.35%.

A105 Properties ( Carbon Steel Forgings for Piping Applications to ASTM A 105/A 105M Standard)

Use : The forged carbon steel piping components manufactured under the A 105 steel specification are used in pressure systems operating at ambient- and higher-temperatures.
We can not only supply Flanges under this grade, but also fittings, valves, and similar parts ordered either to dimensions specified by the customer or to dimensional standards such as ANSI, MSS, ASME, EN and API.

A105 Available Classes

Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500 and Class 2500

A105 Mechanical Properties

Property
A105 Tensile Strength, min:	70,000 psi (485 MPa]
A105 Min. Yield Point:	36,000 psi [250 MPa]
A105 Reduction of area, min:	30% min
A105 Hardness, HB, max	187

Astm A105 Flange / ASME SA 105 Flanges Suppliers, astm a105 class 3000, astm a105 class 300 flange, astm a105 class 150, astm a105 class 600, astm a105 clase 800, astm a105 class 300, astm a105 class 300 flange to class 3000, astm a105 forging, astm a105 ansi b16.5 / astm a105 carbon steel slip on flange, plate, pipe fittings, Astm A105 Material Standard Specification / chemical composition / aisi equivalent / mechanical properties, astm a105 flange dimensions, astm a105 flange pressure rating, astm a105 jis & din equivalent

Brand of Carbon Steel Pipe ASTM A105 flanges we Stock and Supply
